Display route

Remote windows still travel through real networks.

MobaXterm includes an X server and supports X11 forwarding over SSH. A useful workflow also needs server-side permission, application dependencies, latency expectations, and a fallback path.

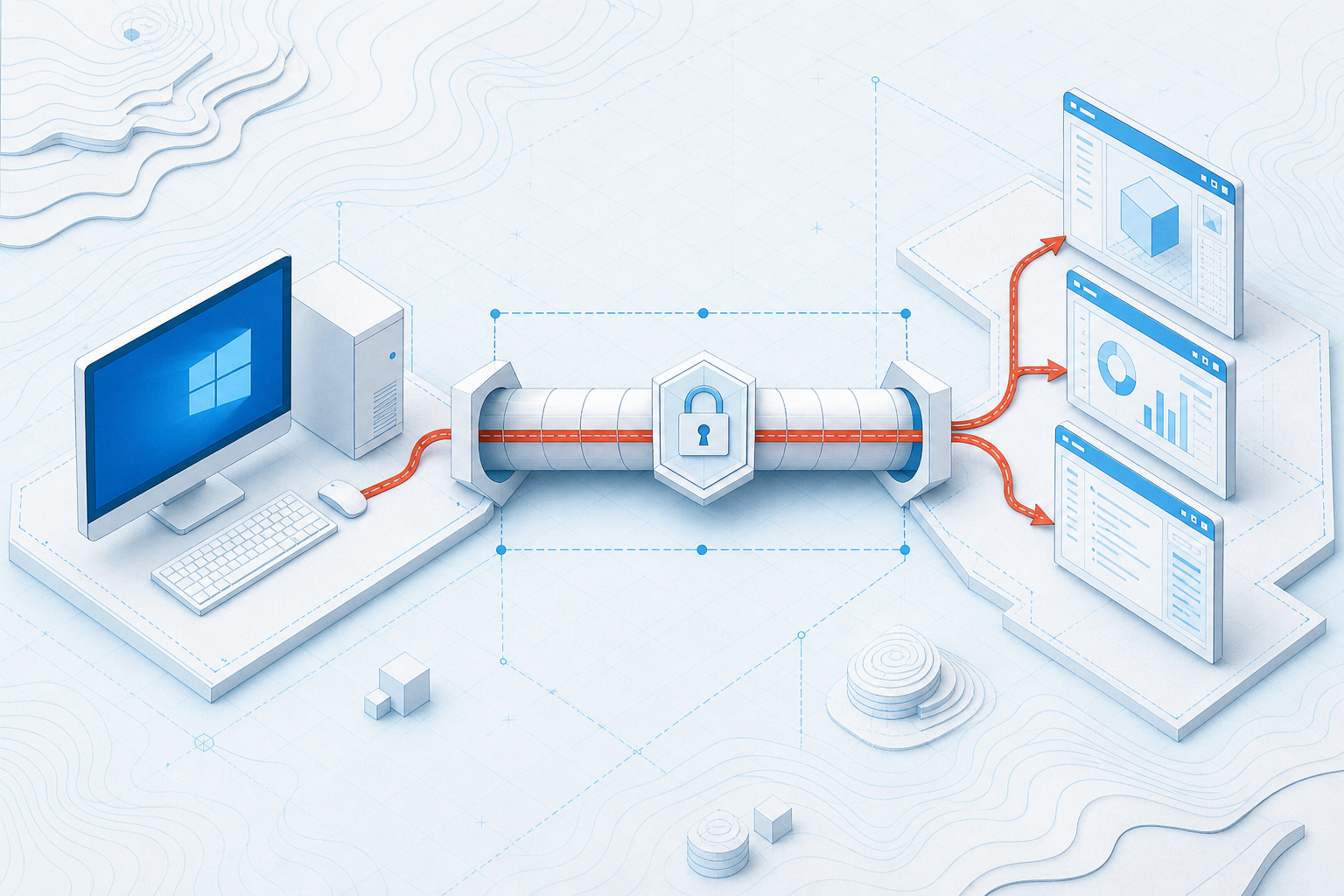

Blueprint showing remote graphical application windows traveling through an SSH tunnel to Windows
REMOTE PROCESS → SSH → LOCAL DISPLAYDependency and latency review

Prerequisite matrix

DISPLAY ROUTE CHECK
LayerConfirmFailure clue
Windows clientX server running and session forwarding enabledNo local display listener
SSH serverForwarding policy and supporting packagesDISPLAY absent or forwarding denied
ApplicationGUI dependencies and launch commandLibrary or authorization error
NetworkLatency, throughput, reconnect behaviorSlow redraw or fragile long session
Baseline
Connect with a known user to a known host.
Display
Confirm the remote display variable and launch a simple client.
Workload
Open the actual engineering or operations application.
Fallback
Define CLI, file export, remote desktop, or on-site alternative.

Performance is part of usability.

  1. Measure

    Observe launch and interaction on representative links.

  2. Bound

    State which workflows are suitable.

  3. Recover

    Document interruption and reconnect behavior.

  4. Choose

    Use a different delivery pattern when evidence says so.
